Hunan Haoyue Trade Co.,Ltd.
OEM fiber optic equipment1GE+1FE+WIFI XPON ONU modem with English firmware 2.4G WiFi fiber optic equipment
epon onu modem,epon modem comcast,epon modem configuration
Multiple types for building backbones, data centers and enterprise applications. Compatible with cassettes, panels, and splice trays for various cabling needs.
Products DETAILS

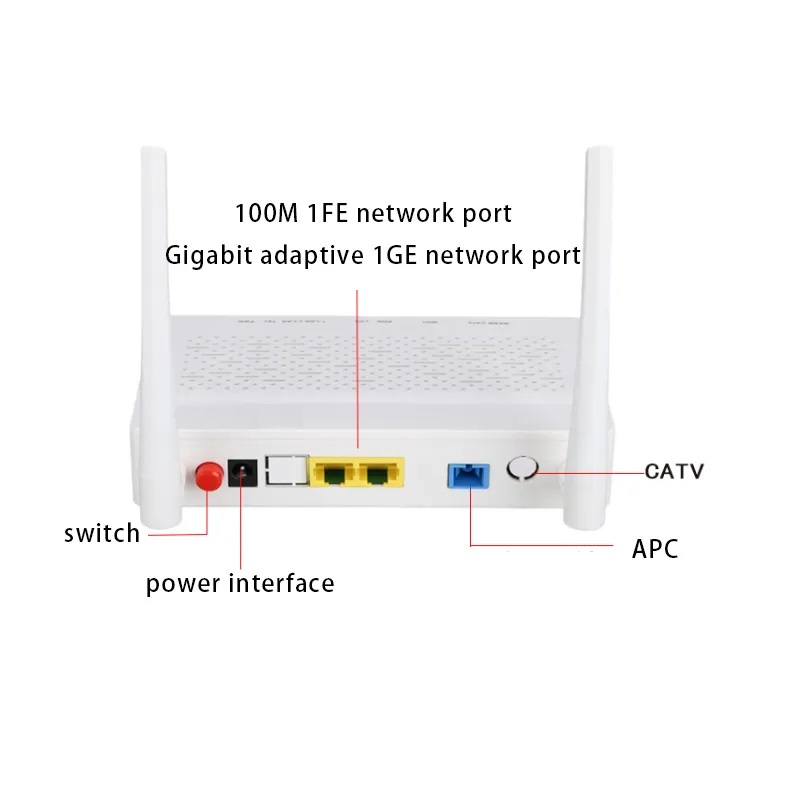

OEM fiber optic equipment1GE+1FE+WIFI XPON ONU modem with English firmware 2.4G WiFi fiber optic equipment
Feature
* comply fully with ITU-G.984.1/2/3/4 standard and G.987.3 protocol
* support downlink 2.488 Gbits/s rate and uplink 1.244 Gbits/s rate
*support bidirectional FEC and RS(255,239) FEC CODEC
* support 32 TCONT and 256 GEMPORT
* support AES128 decryption function of G.984 standard
* support SBA and DBA dynamically broadband allocation
* support the PLOAM function of G.984 standard
* support Dying-Gasp check and report
* support synchronous Ethernet
* good interworking with the OLT from different manufacturers
* down-link LAN ports:1*10/100M with auto-negotiation 1*10/100/1000M with auto-negotiation
* support the rogue ONU alarm function
* Support VLAN function
* operation mode:SFU or HGU option
* support IEEE802.11b/g/n standard for WIFI
* double antennas: external box with 5DBi
* support of 300Mbps PHY rate
* support multiply SSID
* Multiple encryption methods :WFA、WPA、WPA2、WAPI
* Compatible with popular OLT
* support downlink 2.488 Gbits/s rate and uplink 1.244 Gbits/s rate
*support bidirectional FEC and RS(255,239) FEC CODEC
* support 32 TCONT and 256 GEMPORT
* support AES128 decryption function of G.984 standard
* support SBA and DBA dynamically broadband allocation
* support the PLOAM function of G.984 standard
* support Dying-Gasp check and report
* support synchronous Ethernet
* good interworking with the OLT from different manufacturers
* down-link LAN ports:1*10/100M with auto-negotiation 1*10/100/1000M with auto-negotiation
* support the rogue ONU alarm function
* Support VLAN function
* operation mode:SFU or HGU option
* support IEEE802.11b/g/n standard for WIFI
* double antennas: external box with 5DBi
* support of 300Mbps PHY rate
* support multiply SSID
* Multiple encryption methods :WFA、WPA、WPA2、WAPI
* Compatible with popular OLT
Specification
|
Tech parameters
|
Description
|
|
Up-link interface |
1 GPON interface，SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s rate Fiber type：SC/PC
Optical power：1~4 dBm Sensitivity：-28 dBm safety: ONU authentication mechanism |
|
Wavelength(nm)
|
TX 1310nm，RX 1490nm
|
|
Fiber connector
|
SC connector
|
|
Down-link data interface
|
1 pcs 10/100/1000Mbps auto-negotiation Ethernet interface, RJ45 interface
|
|
Indicator LED
|
6pcs，refer to NO.6 definition of indicator LED
|
|
DC supply interface
|
input＋12V 1A，footprint：DC0005 ø2.1MM
|
|
Power
|
≤5W
|
|
Operating temperature
|
-5～+55℃
|
|
Humidity
|
10～85%（non-condensation）
|
|
Storage temperature
|
-30～+70℃
|
|
Dimension（MM）
|
155*92*32mm（mainframe）
|
|
Weight
|
0.5Kg（mainframe）
|
