ONU Optical Network Terminal GPON ONT XPON 1GE CATV ONU
fiber-optic modem,fiber gpon modem,what is a optical modem
Multiple types for building backbones, data centers and enterprise applications. Compatible with cassettes, panels, and splice trays for various cabling needs.
Products DETAILS

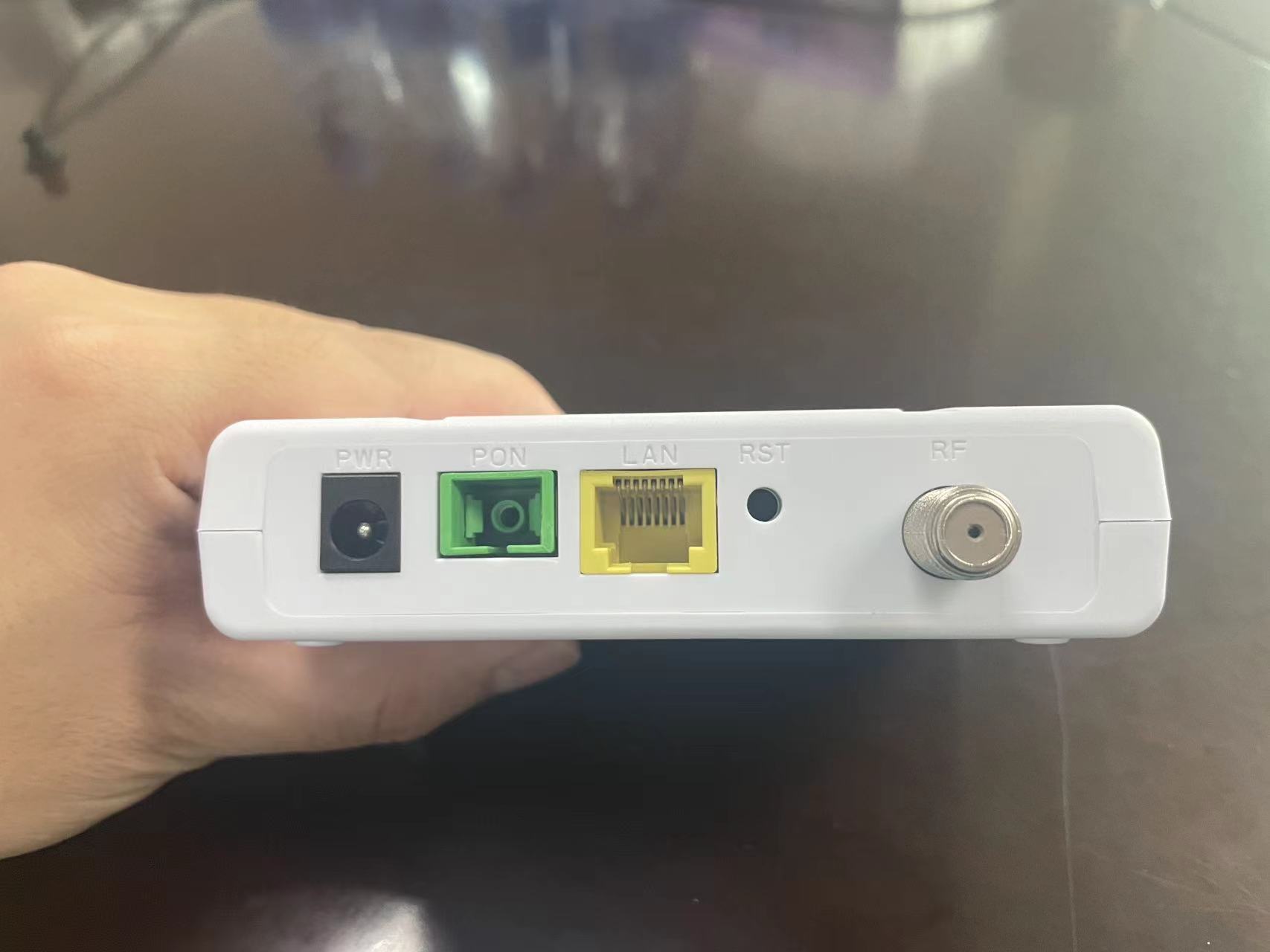

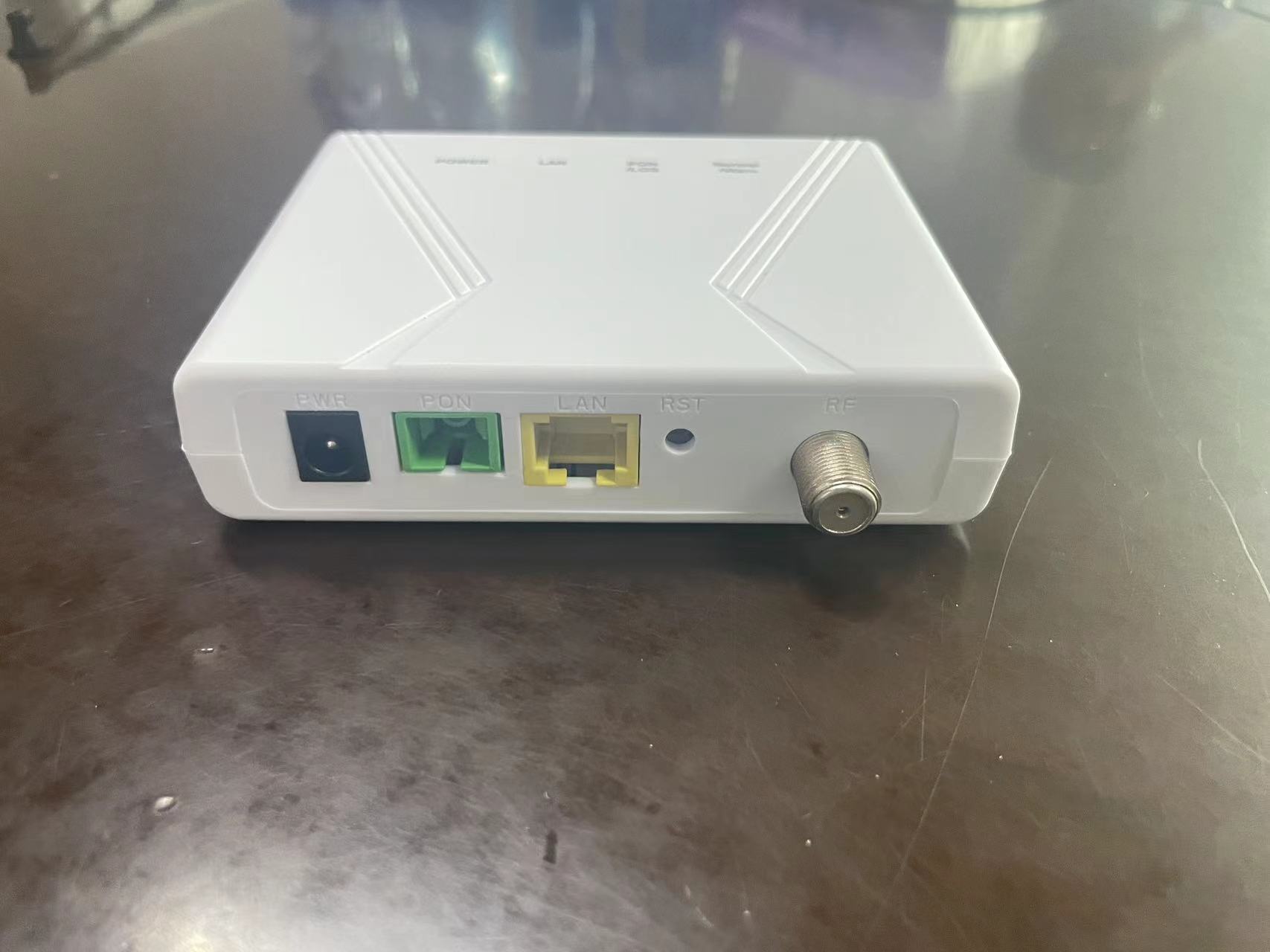

ONU Optical Network Terminal GPON ONT XPON 1GE CATV ONU
ONU product is theterminal equipment of a seriesof GPONwhich comply fully with ITU-G.984.1/2/3/4 standard and meet the energy-saving of G.987.3 protocol, AP312GDRis based on mature and stable and high cost-effective GPON technology which adoptshigh-performance GPONrealtek chipset and has high reliability, easy management,flexible configuration,
robustness,good quality service guarantee(Qos). GPON has G / E PON mutual conversion function, which is realized by pure software ONU support one RF signalfor TV.
comply fully with ITU-G.984.1/2/3/4 standard and G.987.3 protocol
support downlink 2.488 Gbits/s rate and uplink 1.244 Gbits/s rate
support bidirectional FEC and RS(255,239) FEC CODEC
support the rogue ONU alarm function
Support VLAN function
operation mode:SFU or HGU option
one RF port for TVapplication
robustness,good quality service guarantee(Qos). GPON has G / E PON mutual conversion function, which is realized by pure software ONU support one RF signalfor TV.
|
Model Number
|
HY101C
|
|
Place of Origin
|
XPON ONT
|
|
Brand Name
|
OEM
|
|
Use
|
FTTT
|
|
Warranty Time
|
1 YEAR
|
|
Network
|
Wireless Lan, Wired LAN, wifi
|
|
Product name
|
Ftth Onu
|
|
Application
|
PON Networks
|
|
Fiber Type
|
SMF
|
|
Model
|
HY101C
|
|
Ports
|
1GE+CATV
|
|
Function
|
FTTH Optical Network Connection
|
|
Warranty
|
1 Year / 12 Months
|
|
Keywords
|
CATV ONU
|
|
Connector
|
APC
|
|
Certification
|
CE RoHS FCC ISO9001
|
support downlink 2.488 Gbits/s rate and uplink 1.244 Gbits/s rate
support bidirectional FEC and RS(255,239) FEC CODEC
support AES128 decryption function of G.984 standard
support SBA and DBA dynamically broadband allocation
support the PLOAM function of G.984 standard
support Dying-Gasp check and report
support synchronous Ethernet good interworking with the OLT from different manufacturers,such as huawei,ZTE,Cortina etc down-link LAN ports:1*10/100/1000M with auto-negotiation
support SBA and DBA dynamically broadband allocation
support the PLOAM function of G.984 standard
support Dying-Gasp check and report
support synchronous Ethernet good interworking with the OLT from different manufacturers,such as huawei,ZTE,Cortina etc down-link LAN ports:1*10/100/1000M with auto-negotiation
support the rogue ONU alarm function
Support VLAN function
operation mode:SFU or HGU option
one RF port for TVapplication
3. Products feature and application of HG8546
Maintenance features
*Local management using Web and remote management using TR069 and OMCI
*Optical power monitoring
*802.1ag Ethernet OAM
*Loop-line test of POTS ports,call emulation and PPPoE dialup emulation
GPON features
*Class B+ optical module
*Security authentication mode: SN,
password or SN+password
*Upstream/downstream FEC
Routing features
*NAT function
*Internet, IPTV and VoIP services are automatically bound to ONT ports
*Virtual server, port trigger, DMZ,and DDNS
Reliability features
*Dual systems for software protection
*Type B protection and rogue ONT detection
*Local management using Web and remote management using TR069 and OMCI
*Optical power monitoring
*802.1ag Ethernet OAM
*Loop-line test of POTS ports,call emulation and PPPoE dialup emulation
GPON features
*Class B+ optical module
*Security authentication mode: SN,
password or SN+password
*Upstream/downstream FEC
Routing features
*NAT function
*Internet, IPTV and VoIP services are automatically bound to ONT ports
*Virtual server, port trigger, DMZ,and DDNS
Reliability features
*Dual systems for software protection
*Type B protection and rogue ONT detection
