1000M Reverse POE Switch 8 Port Reverse POE ONU Switch for FTTH
mems fiber optic switch,tp link fiber optic switch
Multiple types for building backbones, data centers and enterprise applications. Compatible with cassettes, panels, and splice trays for various cabling needs.
Products DETAILS

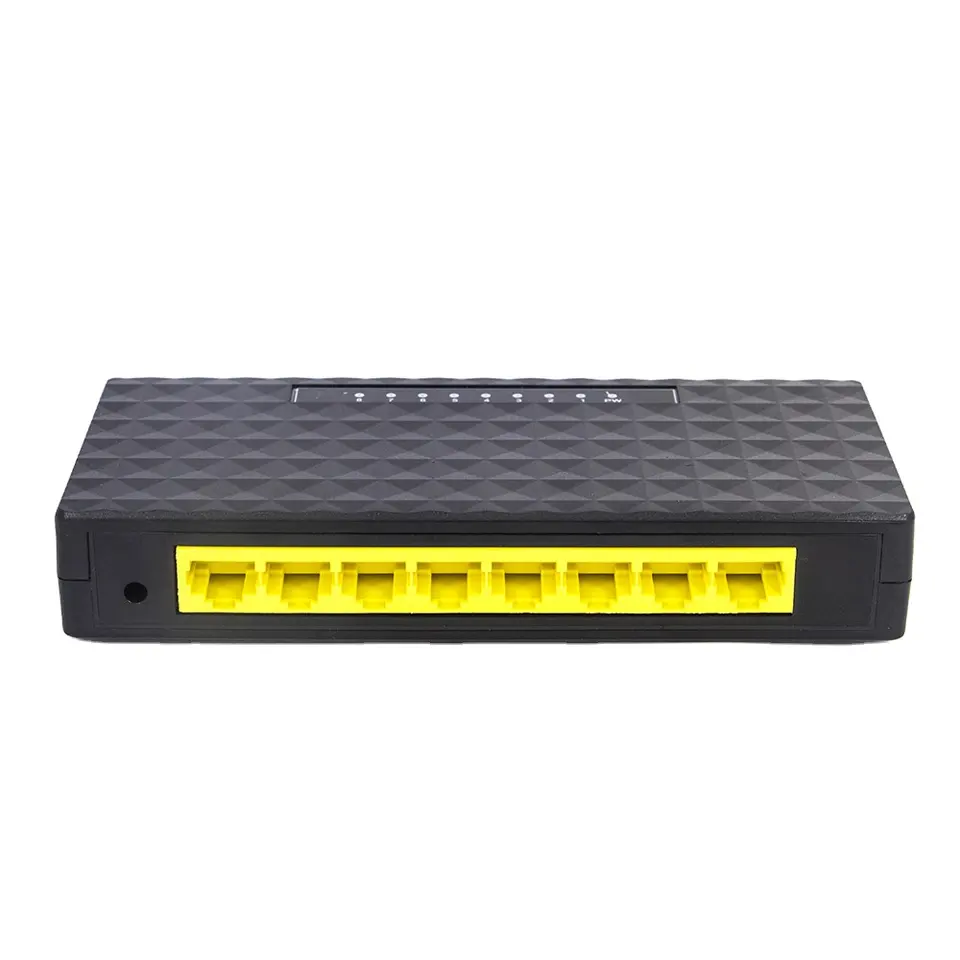

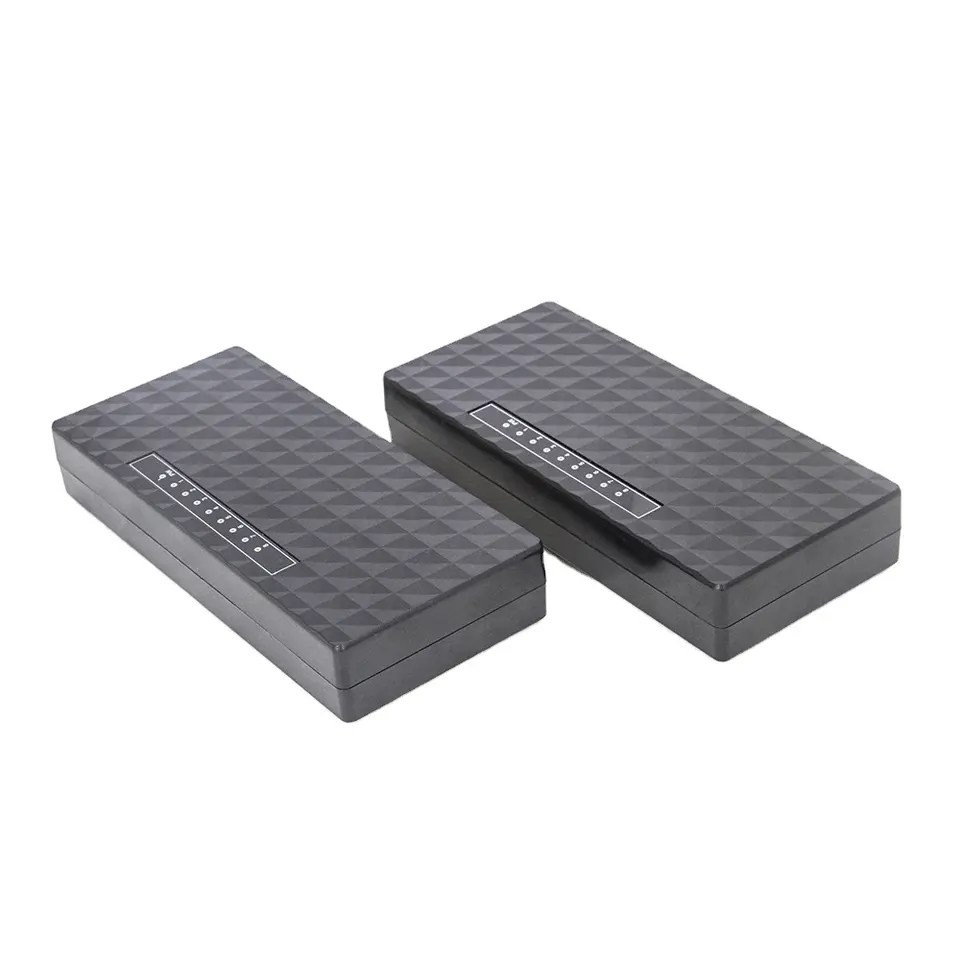

1000M Reverse POE Switch 8 Port Reverse POE ONU Switch for FTTH
RPOE switch has intelligent device Power management features solving a major problem of powering the device for internet service provider. This switch can be powered using remote power from customer using specially designed POE injector or any standard POE injector(24v DC,0.75amp).This eliminates the needs of arranging power at building top (ups not require/No need to pay more money to customer or society).This saves lot of money of ISPs and improves uninterrupted service to the customer.
Basic Characteristics
|
Product description
|
8 port 1000M Reverse POE Switch
|
|
CPU
|
Industrial grade Chips
|
|
POE Function
|
REVERSE port1~port8 VOL DC9-57V 45+ 78-/12+ 36-
|
|
Characteristic
|
Each port POE signal indicator
High quality metal case Curing isolation function Interrupt network loop function Stop broadcast storm DHCP conflict prevention |
|
Interface
|
8port 10/100/1000M- REVERSE POE
(All ports support MDI/MDIX adaptive) 1 port DC out 12V MAX 2A(5.5/2.1) |
|
Forwarding mode
|
Store and forward
|
|
network media
|
10BASE-TX: And more than 5 types of unshielded twisted pair(≤150m)
100BASE-TX: And more than 5 types of unshielded twisted pair(≤150m) |
|
Performance specification
|
Bandwidth:1.6Gbps (Non blocking)
network delay(10 to 100M bps):The maximum delay of less than 20 microseconds;MAC:2KB |
|
Compatible network protocols and standards
|
IEEE 802.3i 10BASET
IEEE 802.3u 100BASETX IEEE 802.3x Flow Control, IEEE 802.1Q VLAN bridge operation |
|
LEDs indicator
|
Each port connection status, the working state of PoE system of the power indicator light
|
|
Power support
|
DCIN:9V-57V or DCOUT:12V MAX 2A
|
|
Physical specifications
|
175mm*92mm*32mm(L*W*H)
|
|
Package size
|
181mm*131mm*82mm(L*W*H)
|
|
Environmental Standard
|
Working temperature:0°~55°C
Storage temperature:-20°~75°C Working humidity:10%~90%,No condensation Storage humidity:10%~95%,No condensation Working height:Altitude 3000 M Altitude(10,000ft) Storage height:3000M Altitude(10,000ft) |
|
Safety
|
surge absorption
|
|
weight
|
0.5kg(+power)
|
|
warranty
|
1 years
|
