Industrial Fiber Optic Switch Ethernet Transceiver 100Mbps/Gigabit SC Fiber Optic Converter DIN-Rail

Industrial Switch Hundred Gigabit Gigabit 2-port Ethernet Switch for Security Surveillance Camera DC12V ~ 52V wide DC power supply to support the industry's commonly used voltage standard lightning surge protection (power supply) 4000V can be simultaneously connected to two sets of power supply where one end of the power supply failure will not affect the normal operation of the equipment Reverse connection protection: support for positive and negative reverse connection protection. Reverse connection can work normally, to prevent damage to equipment misuse Short-circuit protection: When the equipment is short-circuited, it can quickly cut off the power supply to avoid other accidents. Can quickly cut off the power supply to avoid other accidents Surge protection: through the common mode 4KV, differential mode 2KV surge test to enhance the power supply resistance to lightning strikes. 6000V lightning protection for the entire port Port lightning safety, built-in lightning protection circuit, multi-level lightning protection, effective absorption of electrostatic charge to reduce the damage caused by lightning induction, more secure equipment Standard industrial-grade design Meet a variety of harsh industrial applications, with strong dust, lightning, corrosion, anti-power interference, excellent characteristics, up to IP40 protection level, strong heat dissipation, to protect the entire industrial network more secure and stable. High and low temperature resistant working environment Rugged aluminum alloy shell, suitable for high temperature +85℃, cold -40℃ harsh environments. Widely used in: integrated energy, smart city, intelligent transportation, intelligent factory, rail transportation, intelligent mine and other industrial environments. 16 test procedures Measure the performance of each real industrial environment application requirements High temperature +75°C test
Conducted Nuisance Test Conducted immunity test Interface unplugging test Low temperature -40°C test Electrical fast transient pulse group immunity test Radiated immunity test Network Storm Test High temperature +85°C power failure restart test Low temperature -40°C cold start test Insulation withstand voltage test Radiated Emission Test Networking Test Anti-static test Surge Impact (Lightning Protection) Test Industrial Frequency Magnetic Field Immunity Test Vibration Test DIN-rail mounting

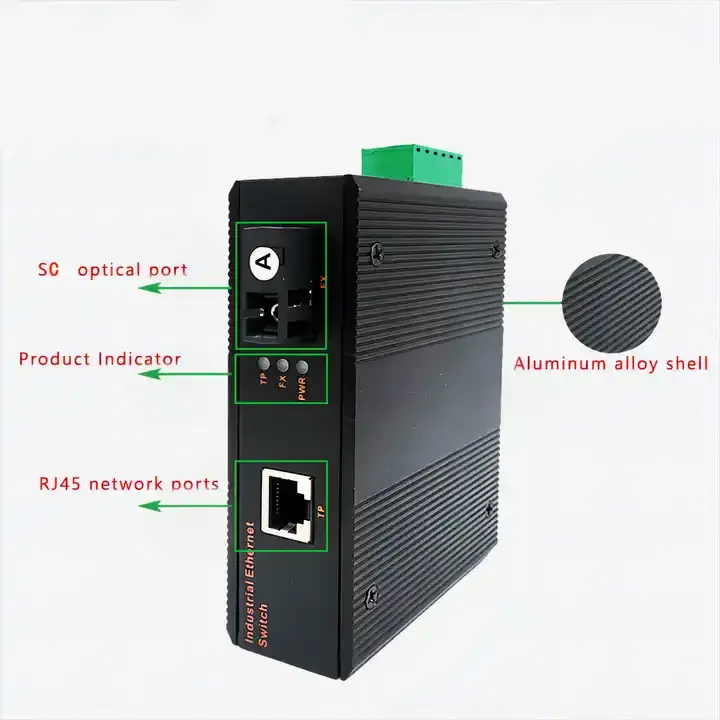

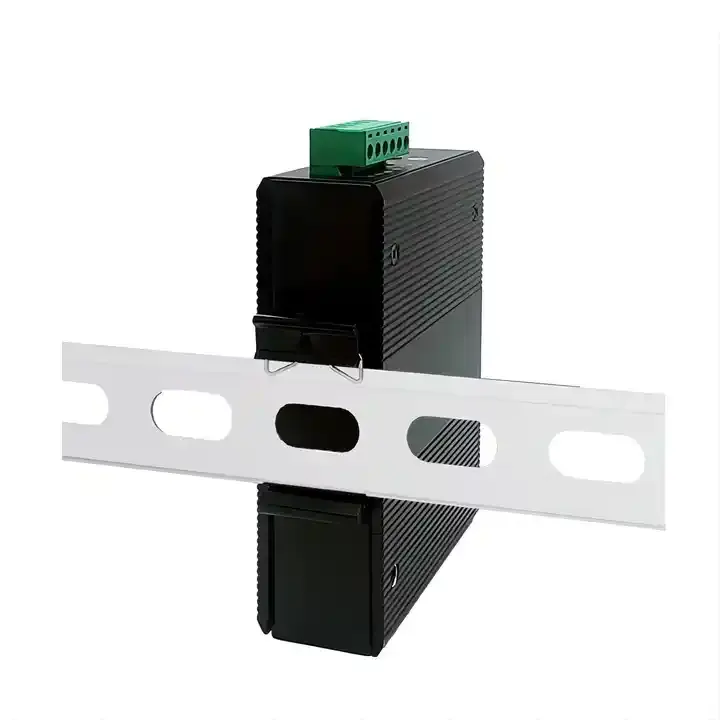

Industrial-grade structural design Step 1: Check the grounding and stability of the DIN-rail; snap the DIN-rail slot of the switch into the DIN-rail. Step 2:Slightly tighten the locating screws of the DIN rail in sequence from the center to both sides to make the DIN rail fit the vertical mounting surface. Step 3:Use screws to fix the mounting rail slot on the fixed guide grooves at both ends of the rail to ensure that the rail and the switch are fixed vertically and stably on the rail. Industrial Switch Interface

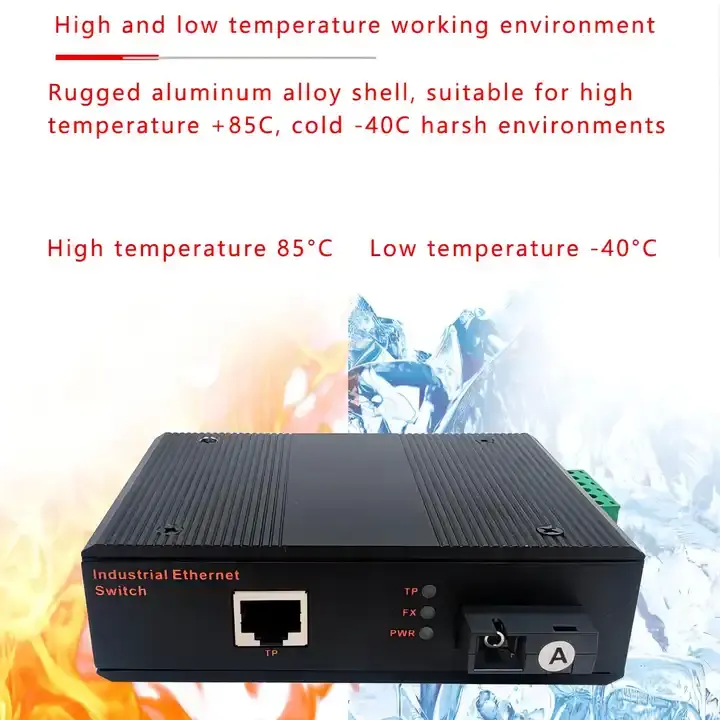

Type:10/100/1000Mbps Number of Ports:2 Overall Dimension: 115*85*30mm Operating Temperature:-40C~85C Installation:DIN rail
mounting Protection:IP40 Shell:High quality aluminum alloy Weight:0.4kg(default without power supply) This product is available in a variety of specifications, please select the appropriate model and contact us for details.
