1 Channel Mini HD Video Encoder Webcast Fader H265 H264 HEVC IPTV CATV HDMI to IP RTMP SRT UDP HLS RTSP

H.265 HD Encoder Specification

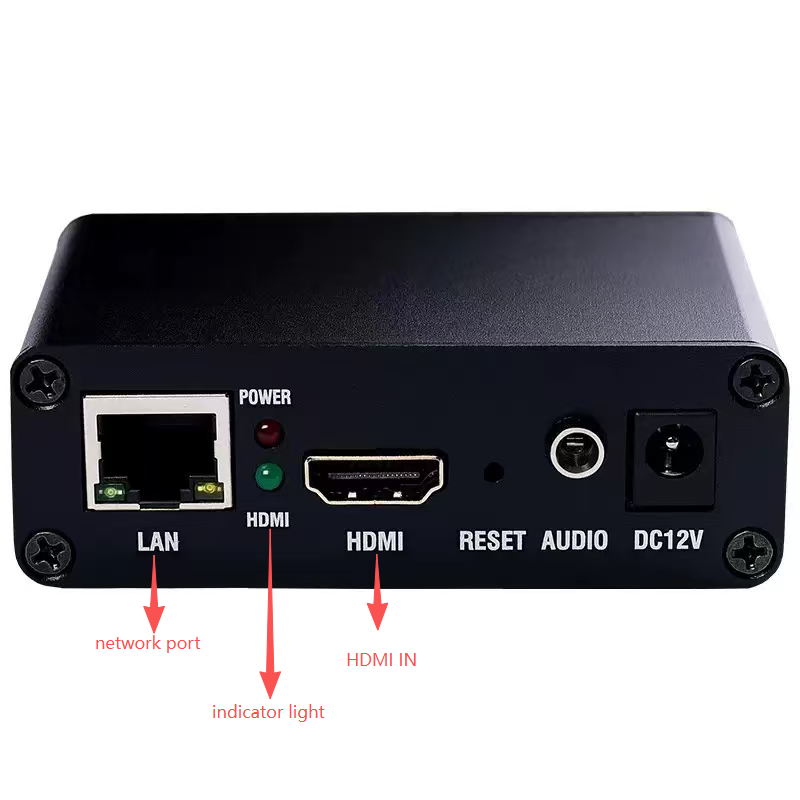

Audio and video in Video in 1 HDMI
Audio in 1 HDMI Built in audio, 3.5mm Analog
Video encode Encoding type H.265/H.264/MJPEG
FPS 5-60
GOP 5-300
Bit rate(k bit) 32-32000
Encoded size: 1920x1080/1680x1200/1680x900/1280x1024/1280x720/1024x768/1024x576/960x540/850x480/800x600/720x576/720x540/720x480/720x404/704x576/640x480/640x360/608x448/544x480/480x480/480x384/480x360/480x320/480x272/same as the input
H.264 level baseline profile/main profile/high profile
Stream One Main Stream Three
Image Quality Range Best/Better~Best/Mid~Best/Lower ~Best /Lowest~Best
Bit rate control CBR/VBR/Strong CBR
Stream RTMP/ RTMP(S)/ RTSP /HTTP TS/HTTP FLV/HLS TS/HLS MP4/MP4/SRT /UDP/RTP
Audio encode Audio input HDMI/ANALOG
Sample rate 44100/48000/Same as input sample rate
Encoder AAC/AAC+/AAC++/MP3/MP2/AC3/Opu
Audio Channel L+R/L/R
Coding bit rate AAC:48000-256000/AAC+:24000-48000/
AAC++:12000-32000/MP3:64000-320000/
MP2: 64000-320000/ AC3:40000-640000
Digital volume -50~50
Denoise(dB) 1-100
G711A Over PTE Disable/Enable
G711A Over RTSP Disable/Enable/Enable and resample with 8k
G711 G711A/G711
OSD Transparency 0-128
Type Text/Img/Scrolling text
Zone 4 Zone
X 0-1920
Y 0-1080
LOGO 4 logos can be uploaded for selection
Font size 8-72
Background color Transparent/White/Black
Font color RGB color
Common Network 1000Mbps
Configuration WEB,Upload,Reset
ONVIF Support ONVIF to search and browse videos

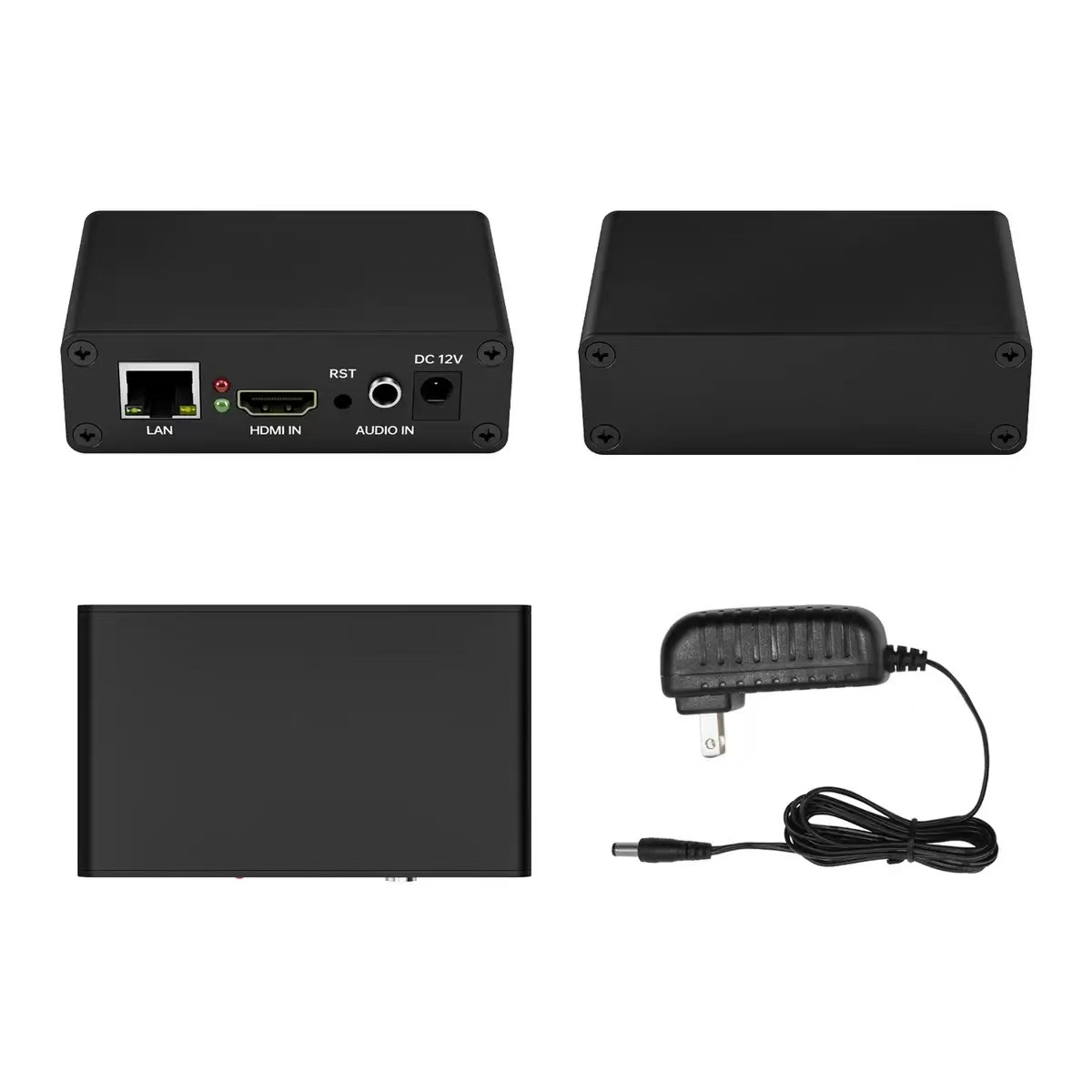

Power Supply 12V/DC,2A
Power <3W
Temperature -20℃+60℃
Humidity <90%, non-condened
Size 125cm x 10.3cm x 3cm
Weight 239g
