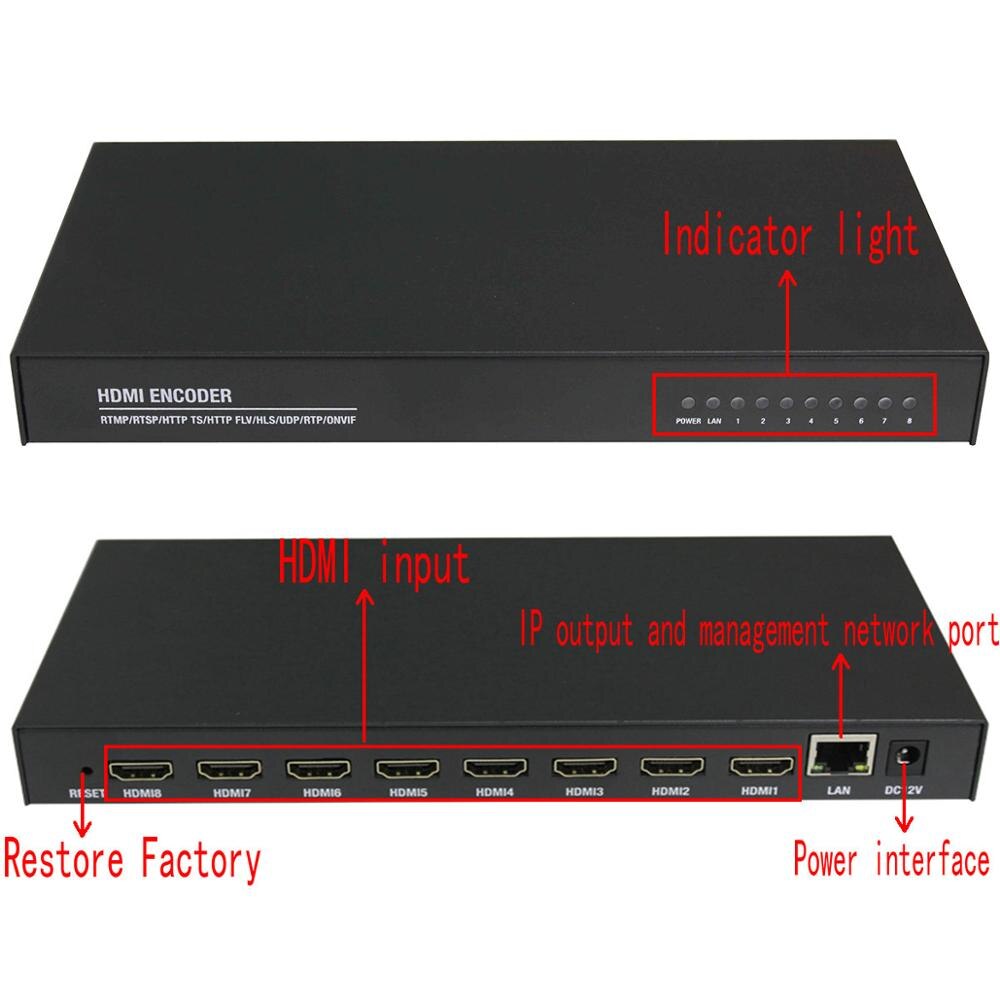

8 Port HDMI IP Encoder H265 /H264 for CCTV Live Broadcast

8 port HDMI Video Streaming multi-protocol Encoder are designed to meet the increasing demand for high quality video delivery to Internet and all kinds of terminal devices

Send Email:

[email protected]

Products

Products DETAILS

8 Port HDMI IP Encoder H265 /H264 for CCTV Live Broadcast

Key Features:

Support image parameter settings
Input signal: 8 Channel HDMI work simultaneously
Supports high-definition video input of up to1080P@60fps
Video format: HD H.265/H.264/MPEG-4 AVC, up to 1080P@60fps
Audio format: AAC,AAC+,AAC++,MP3,MP2, Dolby Digital AC-3
Supports the GOP frame rate setting
Main bitstream and sub bit stream can be transmitted using different network protocols
Support output 2 groups TS over IP streams with 2 different resolutions and 2 different bitrates by each HDMI channel input
Audio input: support 8*HDMI embedded audio
Support RTMP User name and Pass word for authentication of IPTV Server
Capable of OSD settings for logo, text and Scroll Caption; Adjustable of audio gain;
Support H.264 Baseline Profile/Main Profile/High Profile and MP3 & AAC audio compression
Bitrate mode: CBR/VBR
Capable of image parameter settings
Configurable of Multi-Screen, Multi-Protocol ,SRT, HLS, HTTP, RTSP, UDP and RTMP, Low bitrate with high quality image.
Any iOS browsers (iPhone, iPad, MacBook etc.) can have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.
Any terminal devices/decoders can have streams from IPTV Streaming Encoder directly by RTMP protocol with software players (such as VLC).
Supports the HDCP protocol and supports Blu ray HD
Support ONVIF Network Video Protocol
Support multiple equipment display at the same time on a computer
System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
WEB interface authority management
Network interface adopts 100/1000M adaptive/full duplex mode

Technical Specifications:

Input	Video input: 8*HDMI-Compatible (HDCP compatible)
Video	HDMI Input	Max @1080P 60FPS
	Encoding	Encoding	H.264 AVC / H265 HEVC
		Resolution	1920x1080P@60FPS and below
		FPS	5-60FPS
		Bitrate	0.1-32Mbps (Each Channel)
		Bitrate Control	VBR / CBR
IP Output	Transport protocol	TS over IP output, SRT, HLS, RTSP, HTTP, UDP and RTMP protocol
	For each HDMI-Compatible to IP output	Supporting output 2 groups TS over IP streams (for each group the HLS, HTTP, RTSP, UDP and RTMP protocol all enabled). with 2 different resolutions (up to 1080p) and 2 different bitrates to meet different size screen and different bandwidth condition.
Audio	Encoding	AAC / AAC+ /AAC++ / MP2 / MP3 / G.711, etc.
	Sample Rates	44.1kHz / 48.0kHz
	Bitrate	12Kbps ~ 320Kbps adjustable
System	1000Base-T Ethernet interface
	Web based management
	Chinese-English control interface
	Firmware upgrade
Others	Dimension	Standard alone / 1U rack
	Weight	1kg / 4kg for 1U rack
	Power adapter	DC 12V 2A
	Operating temperature	-20 to 80 deg C
	Storage temperature	-40 to 90 deg C
	Relative Humidity 5% to 90% non-condensing
